| Product Description |
|---|
Three-person air showers (three-occupancy air showers) are specialized cleanroom decontamination chambers designed to remove surface dust, lint, and particulate matter from two operators simultaneously before entering controlled environments. By expanding internal chamber capacity, they double pedestrian throughput and significantly reduce shift-change bottlenecks in high-traffic manufacturing facilities.
| Product Specifications | |
|---|---|
| Product Model | KW-AS-04 |
| Overall Dimensions (mm) | 1400 (W) × 2000 (D) × 2100 (H) or Customized |
| Working Area Dimensions (mm) | 800 (W) × 1910 (D) × 1980 (H) or Customized |
| Cabinet Material | SUS201/ 304 Stainless Steel (Thickness: 1.0 mm) Power Coated Metal (Thickness: 1.5 mm) |
| Filtration Efficiency | H14 HEPA Filter ≥ 99.995% @ 0.3 μm / Pre-filter G4 Washable G4 filter, 85%–92% efficiency |
| Air Velocity | 20 – 25 m/s |
| Number of Nozzles | 18 pcs (360° Rotatable Stainless Steel) |
| Power Supply | 110v-240v 50/60 Hz Single-Phase / 220v-440v 50/60hz Three-Phase |
| Rated Power | 2.2 kW |
| Control System | HMI ( PLC control ) supporting 8 languages |
| Blowing Type | Two sides (Left and Right ) Ceiling side (Optional ) |
| Fan | Centrifugal fan, 1250 CMH × 1000 Pa |
| Available Options : | Anti-ESD ionizer system ,UV lamp ,Access control system, Shoe cleaing machine |
-
Material: 100% SUS304 stainless steel (1.0 mm thickness), high corrosion resistance
-
Door Interlock: Electronic dual-door interlock prevents simultaneous opening
-
Viewing Panels: Transparent tempered glass, durable and secure
-
Control System: Intelligent PLC with voice prompts, infrared sensor activation, and a low-noise, high-power blower
-
Filtration: 99.99% @ 0.3 μm HEPA filter + washable primary pre-filter
-
Safety: One-touch emergency stop immediately unlocks both doors
-
Pressure Monitoring: Real-time digital differential pressure display
-
Sealing: Airtight perimeter gaskets prevent cross-contamination
-
Maintenance: Plug-and-play installation with tool-free routine maintenance
-
Optional Add-ons: Sole cleaning machine, access control, auto hand sanitizer, UV lamp, static eliminator

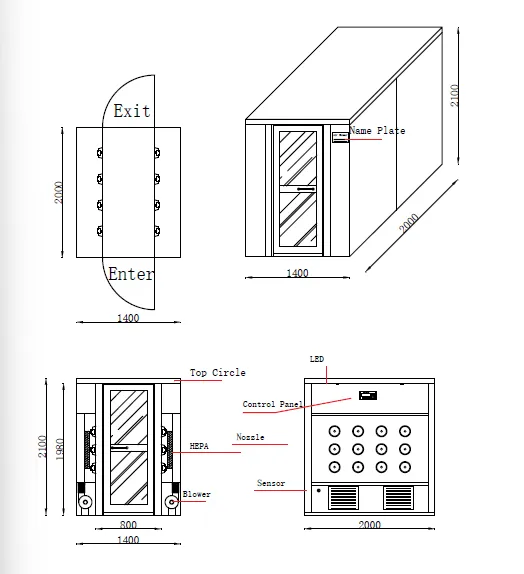

Air Shower Design Drawing
| Kiwin Air Shower Features |
|---|
