Specialize In Air Shower For 15 Years
Cleanroom Air Shower Design & Planning Service
Cleanroom Air Shower For Sale
As a premier cleanroom equipment manufacturer, Kiwin Machinery specializes in high-efficiency Air Showers designed to meet the strictest industry cleanliness standards. Our air shower rooms are widely utilized across semiconductors, biopharmaceuticals, biological laboratories, precision instruments, microelectronics, and food & chemical processing.Serving as the critical transition channel between low- and high-cleanliness areas, Kiwin’s air showers effectively remove and retain dust particles larger than 0.3 micrometers, preventing particulate contamination before personnel enter the cleanroom.

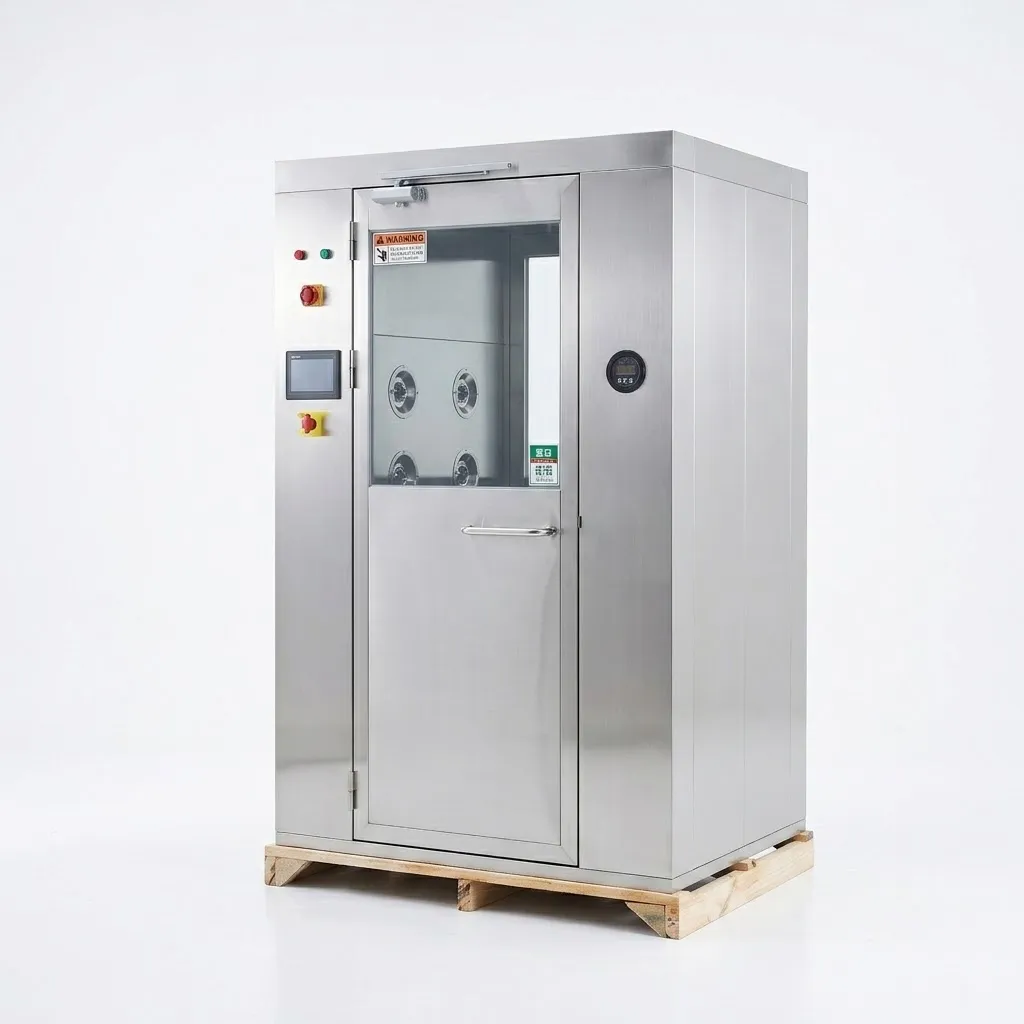

Personnel Air Shower Manufacturer
- Multilingual UI: Smart touchscreen with 8 languages for including
Thai, English, Spanish, German, French, Dutch, Arabic, and Chinese.
- Cleanroom Grade: 99.99% particle removal (0.3μm), meeting ISO Class 5–7 standards.
- Direct Factory: 15-year source maker; custom sizes, materials, and doors without markup.
- Easy Operation: Fast plug-and-play setup, hands-free sensing, and tool-free maintenance.
Main Data:

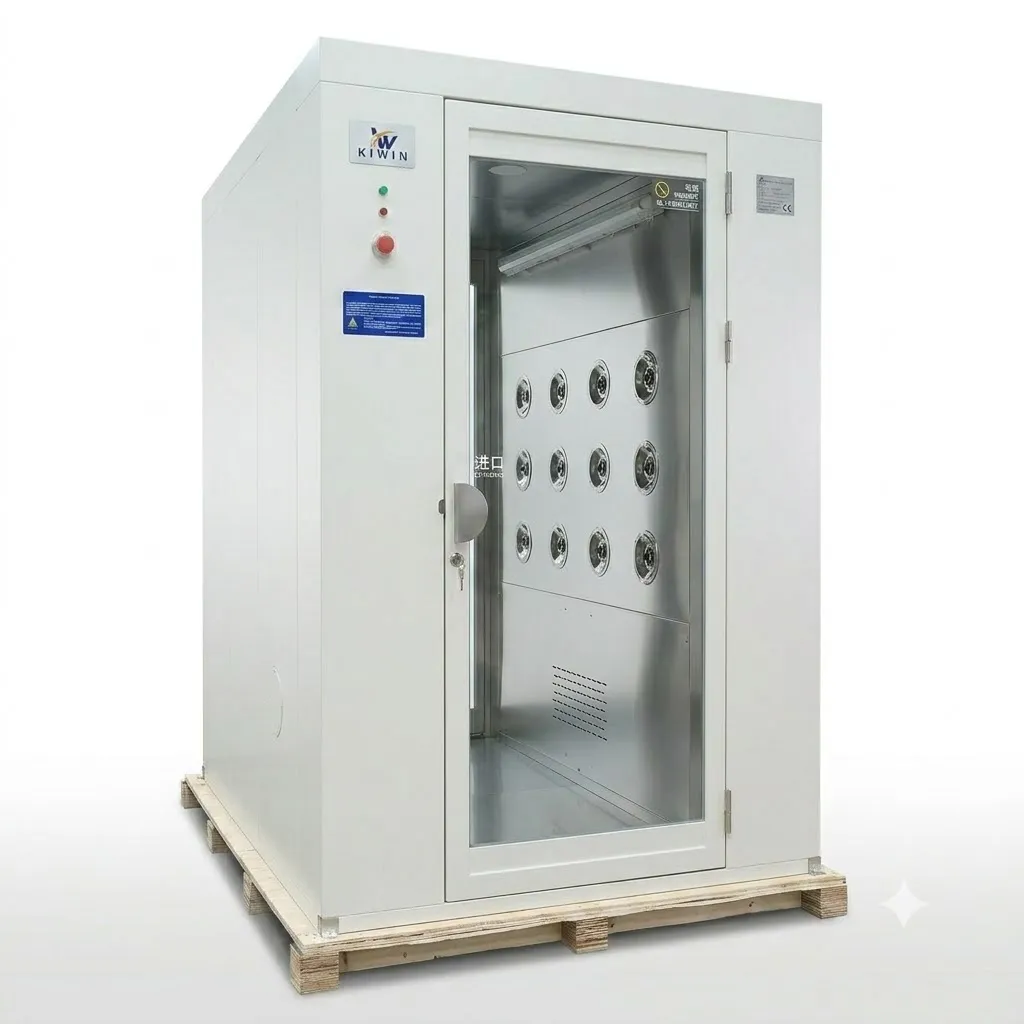

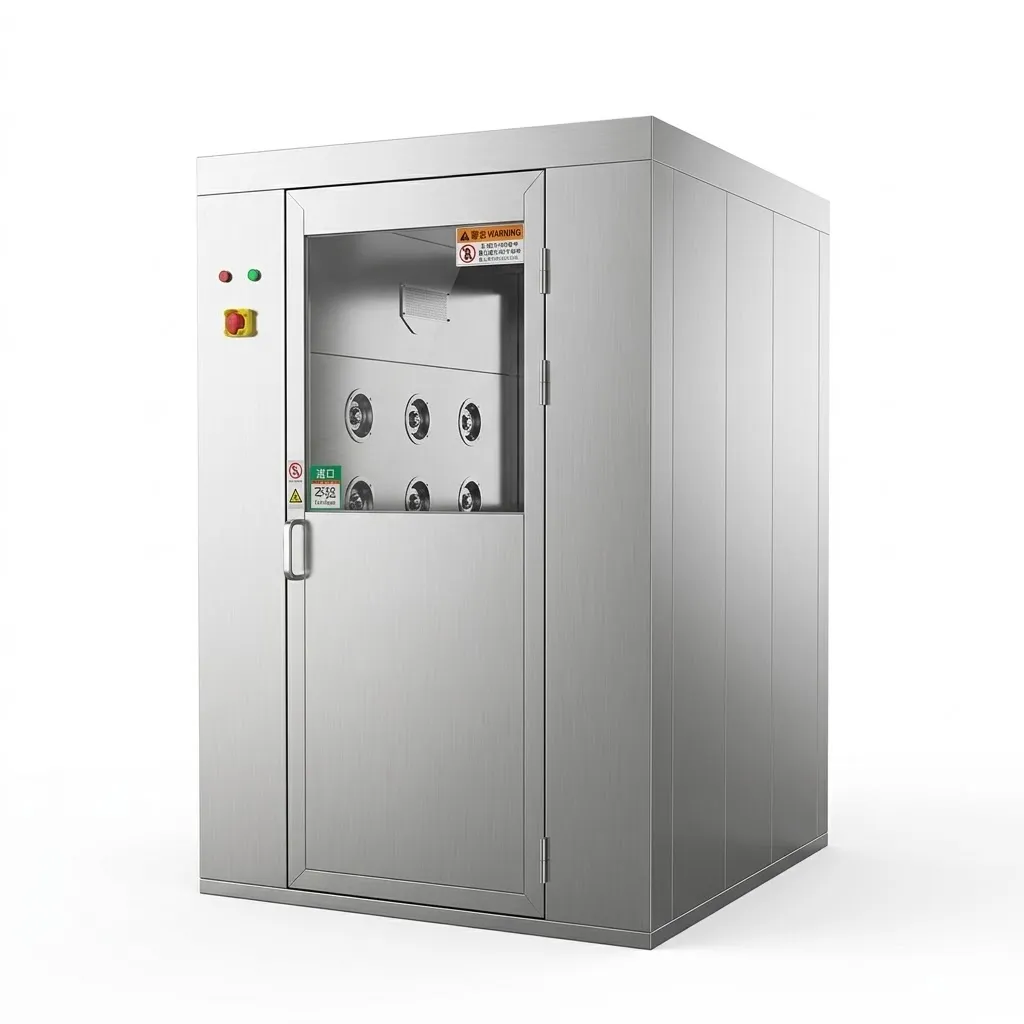

- Persons Per Cycle: 1 Person
- External Size: W1400*D1000*H2100mm
- Internal Size: W800*D910*H1980
- Materials: SS201/304 or Powder Coated Metal
- Cleaning Class : ISO 5 – 7
- EXW Price: 1550-2050 $
Main Data:
- Persons Per Cycle: 1-2 P
- External Size: W1400*D1500*H2100mm
- Internal Size: W800*D1410*H1980
- Materials: SS201/304 or Powder Coated Metal
- Cleaning Class : ISO 5 – 7
- EXW Price: 2050-2550 $
Main Data:
- Persons Per Cycle: 2-3 P
- External Size: W1400*D2000*H2100mm
- Internal Size: W800*D1910*H1980
- Materials: SS201/304 or Powder Coated Metal
- Cleaning Class : ISO 5 – 7
- EXW Price: 2550-3050 $
Main Data:

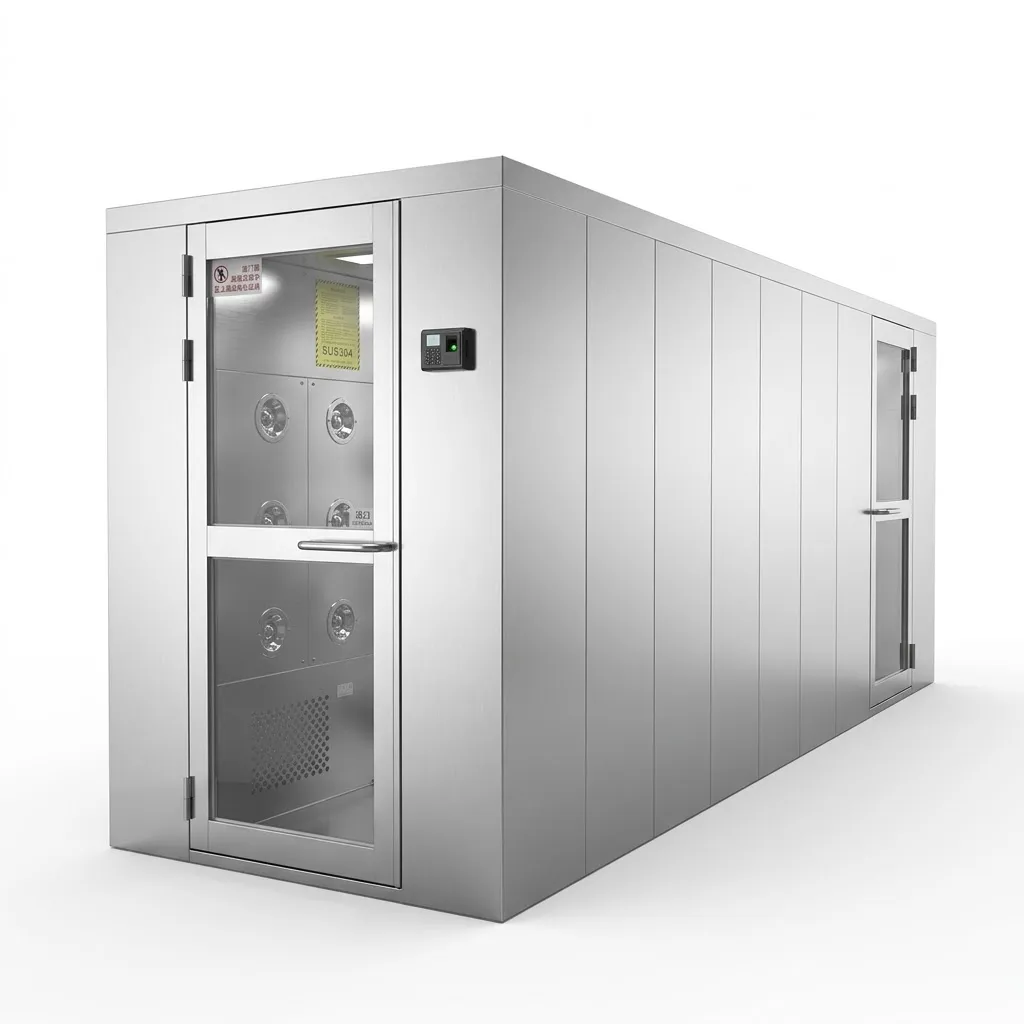

- Persons Per Cycle 5-8 P
- External Size: W1400*D4000*H2100mm
- Internal Size: W800*D3910*H1980
- Materials: SS201/304 or Powder Coated Metal
- Cleaning Class : ISO 5 – 7
- EXW Price: 4550-5550 $
Main Data:
- Persons Per Cycle: 3-4 P
- External Size: W1700*D2000*H2200mm
- Internal Size: W800*D2000*H1980
- Materials: SS201/304 or Powder Coated Metal
- Cleaning Class : ISO 5 – 7
- EXW Price: 5550-6050 $
Main Data:

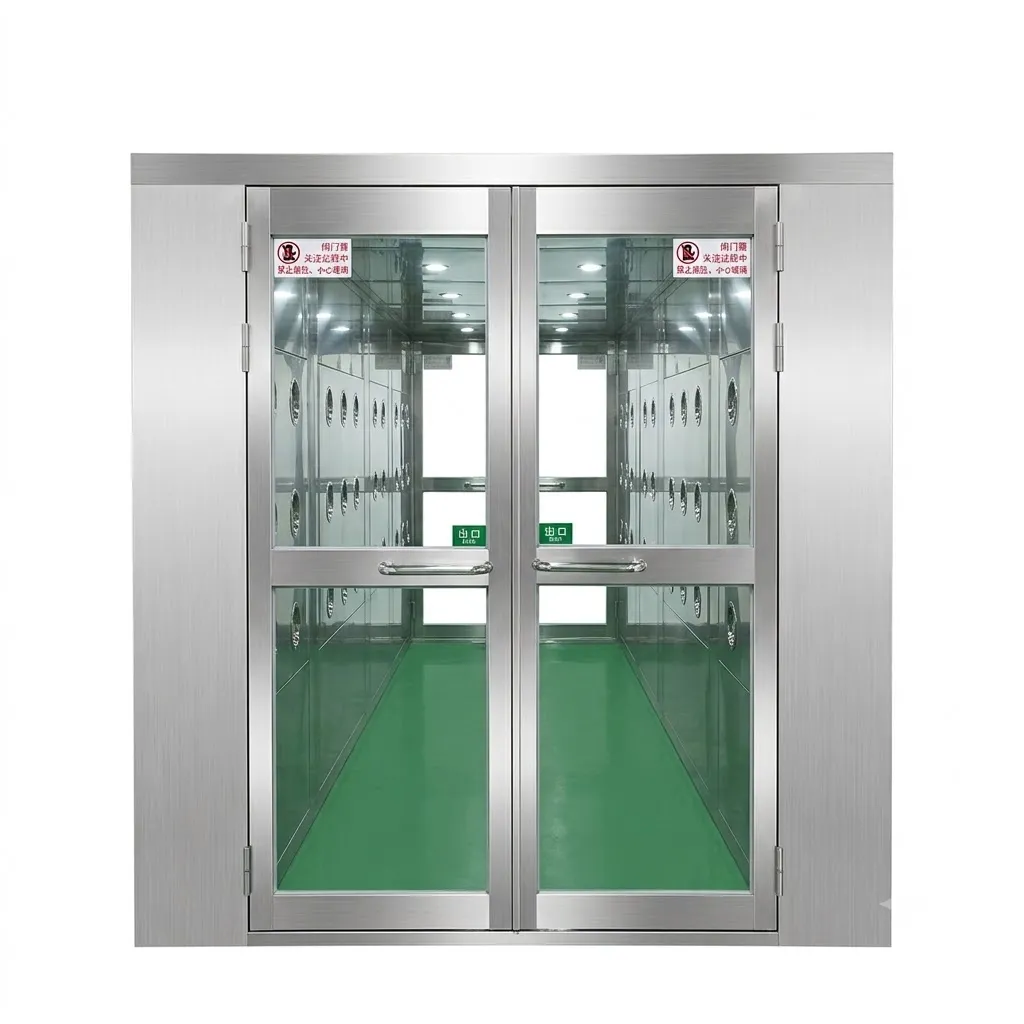

- Persons Per Cycle : 6-8 P
- External Size: W2000*D2000*H2100mm
- Internal Size: W1400*D1910*H1980
- Materials: SS201/304 or Powder Coated Metal
- Cleaning Class : ISO 5 – 7
- EXW Price: 4550-5050 $
| Straight Thru Personnel Air Shower You May Be Interested In | |||||
|---|---|---|---|---|---|
| Model / Capacity | External Size (W*D*H) mm |
Inner Size (W*D*H) mm |
Nozzle (pcs) |
Blowing Type | Price (USD) |
| Single Person | 1190*1000*2050 | 790*900*1950 | 6 | 1 side | $1,550 – $2,050 |
| 990*700*1980 | 750*640*1900 | 6 | 1 side | $1,550 – $2,050 | |
| 1240*1000*2100 | 800*910*1980 | 12 | 2 sides | $1,550 – $2,050 | |
| Two Persons | 1240*1500*2100 | 800*1410*1980 | 24 | 2 sides | $2,050 – $2,550 |
| 1190*1500*2050 | 790*1400*1950 | 12 | 1 side | $2,050 – $2,550 | |
| 1250*1500*2100 | 800*1410*1980 | 24 | 2 sides | $2,050 – $2,550 | |
| 1500*1500*2050 | 800*1410*1950 | 24 | 2 sides | $2,050 – $2,550 | |
Cargo Air Shower For Materials
- Functionality: Dual action: high-speed dust blow-off with interlocked airlock isolation
- Easy Installaion: Pre-assembled modular design with plug-and-play wiring for quick, effortless on-site installation.
- Export Crated: 100% factory-tested; vacuum foil plus heavy-duty seaworthy crating.
- Intelligent PLC & HMI touchscreen control for real-time monitoring, precise parameter settings, and stable operation.
Main Data:

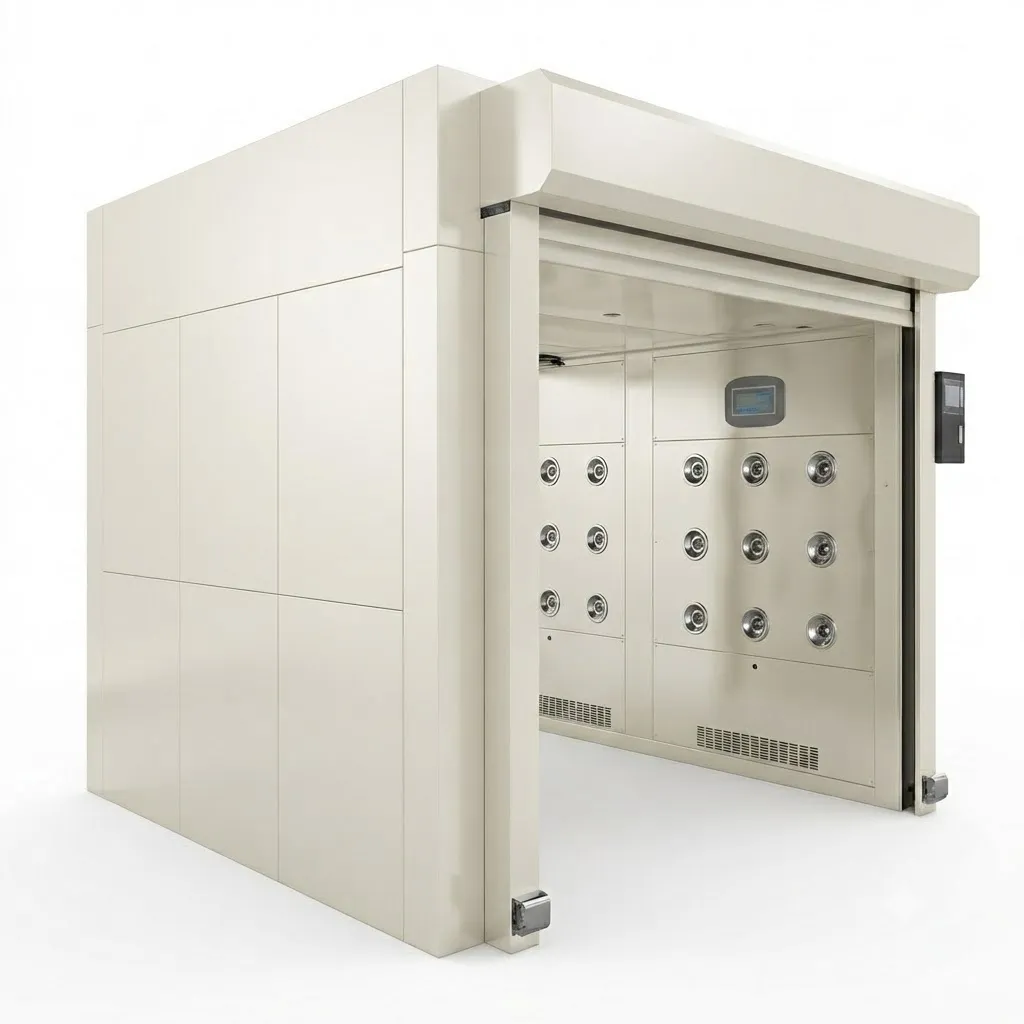

- For Passing Trolley , Forklift with Materials
- External Size: W2000*D2000*H2500mm
- Internal Size: W1400*D2000*H2000mm
- Materials: SS201/304 or Powder Coated Metal
- Cleaning Class : ISO 5 – 7
- EXW Price: 5550-7550 $
Main Data:

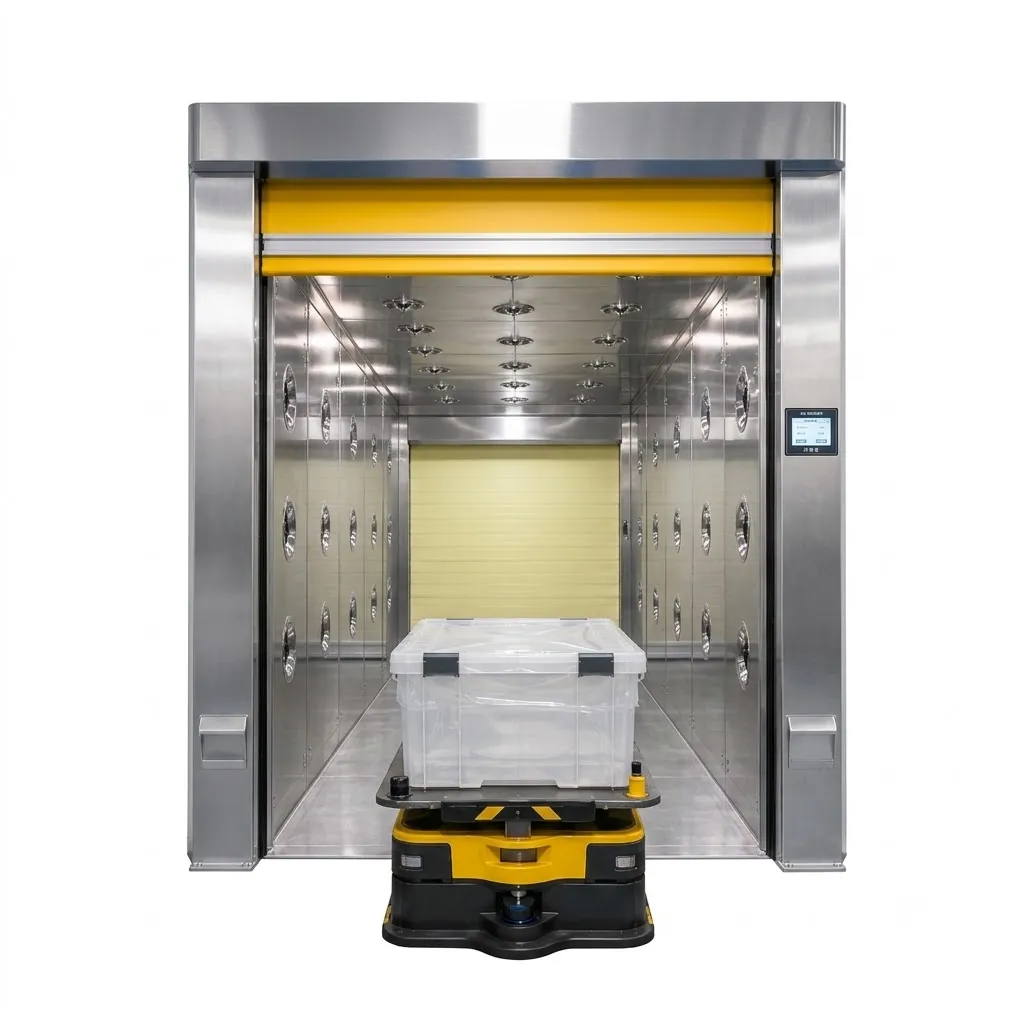

- Signal Interaction with Automatic Guided Vehicle
- External Size: W2000*D2000*H2500mm
- Internal Size: W1400*D2000*H2000mm
- Materials: SS201/304 or Powder Coated Metal
- Cleaning Class : ISO 5 – 7
- EXW Price: 5550-7550 $
Main Data:

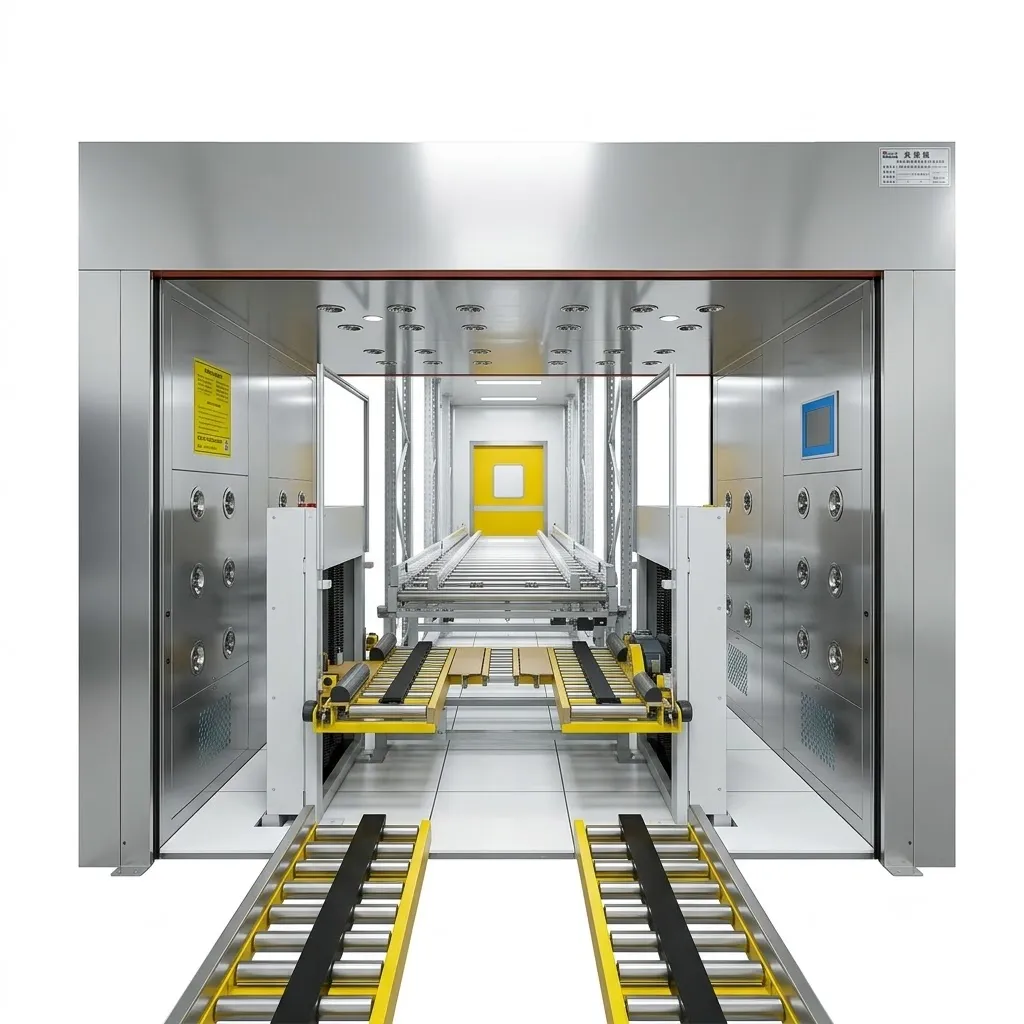

- Signal Interaction with conveyor belt
- External Size: W2000*D2000*H2500mm
- Internal Size: W1400*D2000*H2000mm
- Materials: SS201/304 or Powder Coated Metal
- Cleaning Class : ISO 5 – 7
- EXW Price: 5550-7550 $
Your Premier Air Shower Room
Manufacturer in China
Looking for a Custom Air Shower Solution?
As an original equipment manufacturer (OEM/ODM), KIWIN MACHINERY offers end-to-end customization to match your exact cleanroom specifications. If none of the standard configurations above meet your layout requirements, contact our engineering team below. We deliver tailored, cost-effective cleanroom solutions designed for your facility.

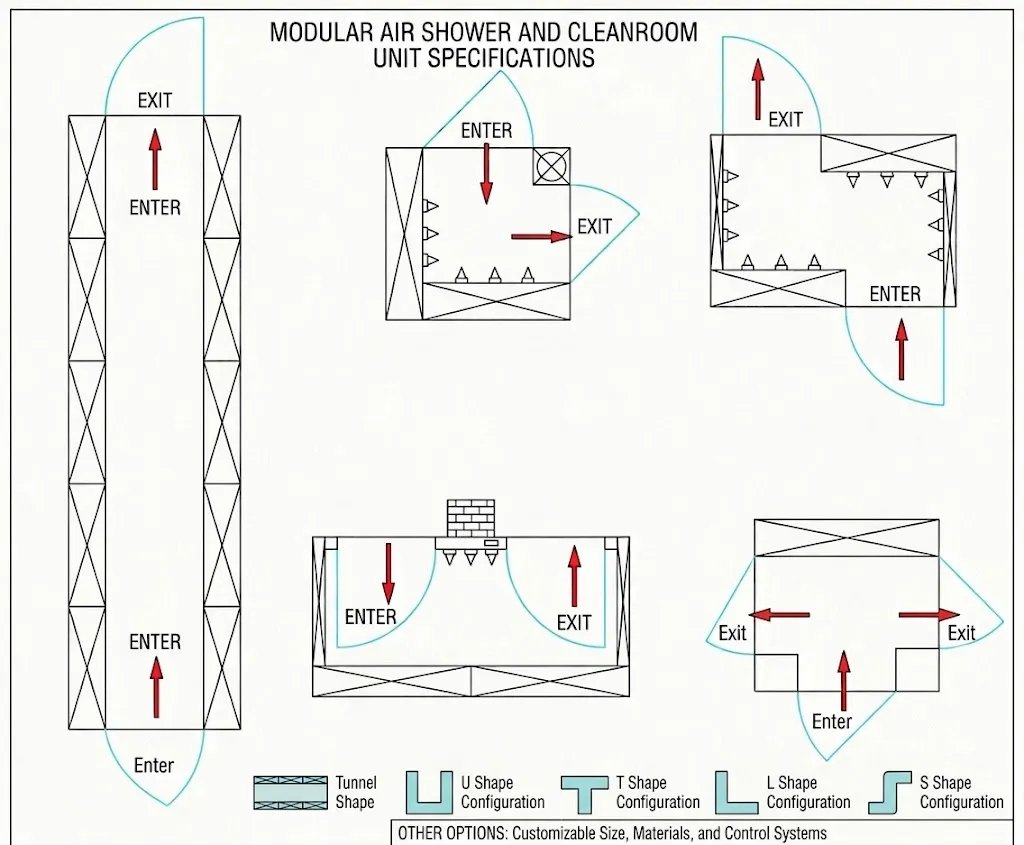

Custom Layouts Available: T-Shape, L-Shape, U-Shape, Straight-Through, and High-Throughput Air Shower Tunnels.
Custom Options: Dimensions, nozzle configurations, interlocking door systems, filtration levels, and construction materials (SUS 304/201/Powder-coated steel).
Air Shower Application Industry

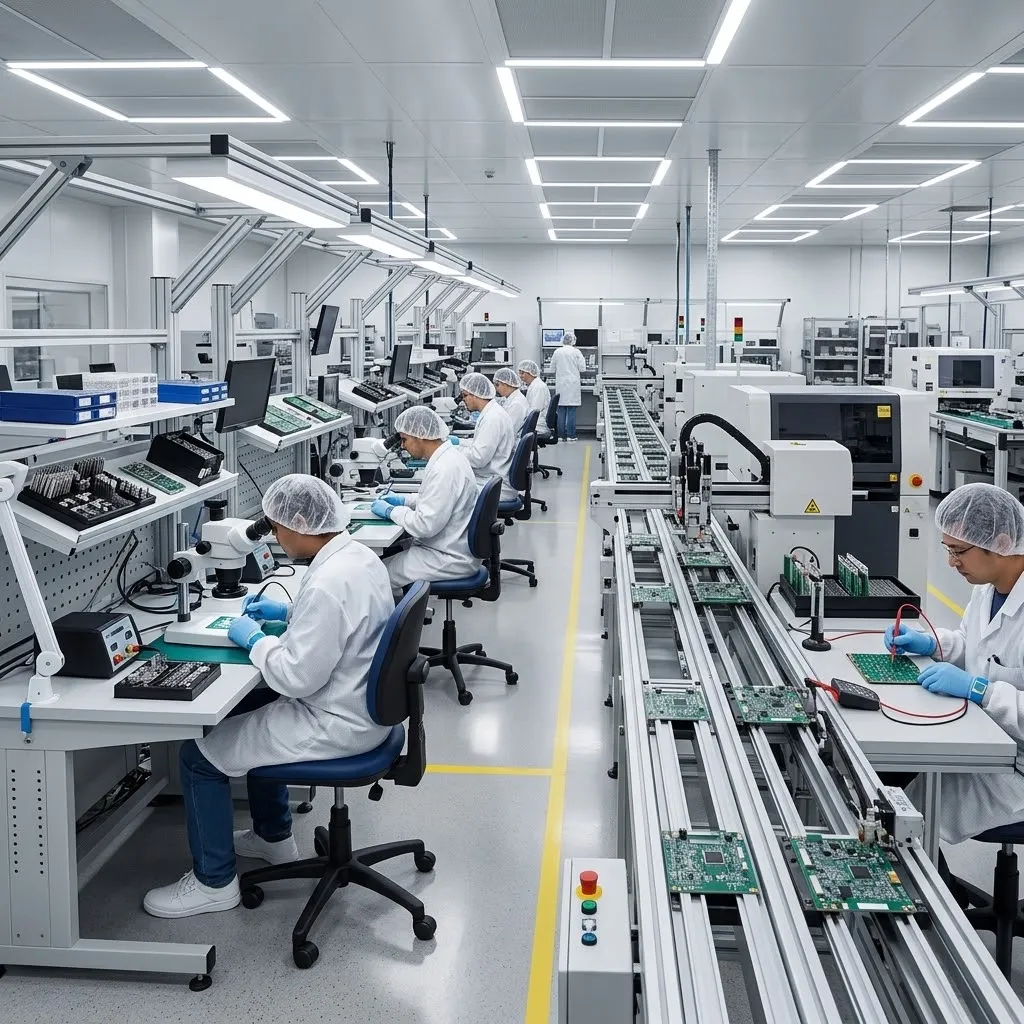

Electronics & Semiconductor: Prioritizes static elimination and sub-micron particle removal (Ionizing bars, anti-static grounding, and high-velocity ULPA/H14 HEPA filtration).
Recommend Model :

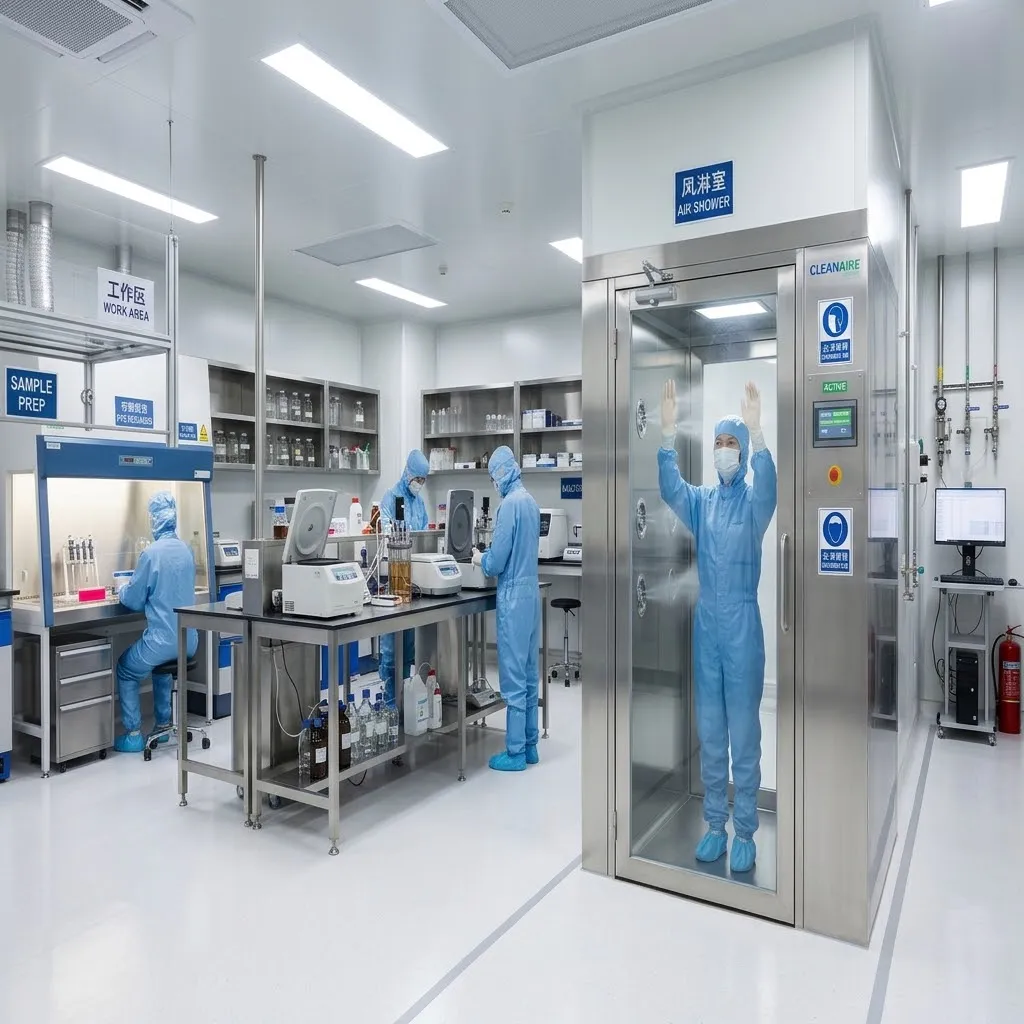

Laboratories & Pharma: Prioritizes airtight containment, differential pressure management, and biohazard isolation (Airtight interlocks, pressure monitoring, and touchless access control).
Recommend Model :
Heavy Dust Environment: Prioritizes airtight containment, differential pressure management, and biohazard isolation (Airtight interlocks, pressure monitoring, and touchless access control).
Recommend Model :
Kiwin Air Shower Option Function
Voltage
Kiwin air shower supporting single and threww phase voltage .
Single Phase : 110v-240v 50/60hz
Three Phase : 220v-440v 50*60hz
Access Control
door air shower supports AGV cars, can interact with the car through signals to achieve prodcuts streamlined operation
HMI and PLC system

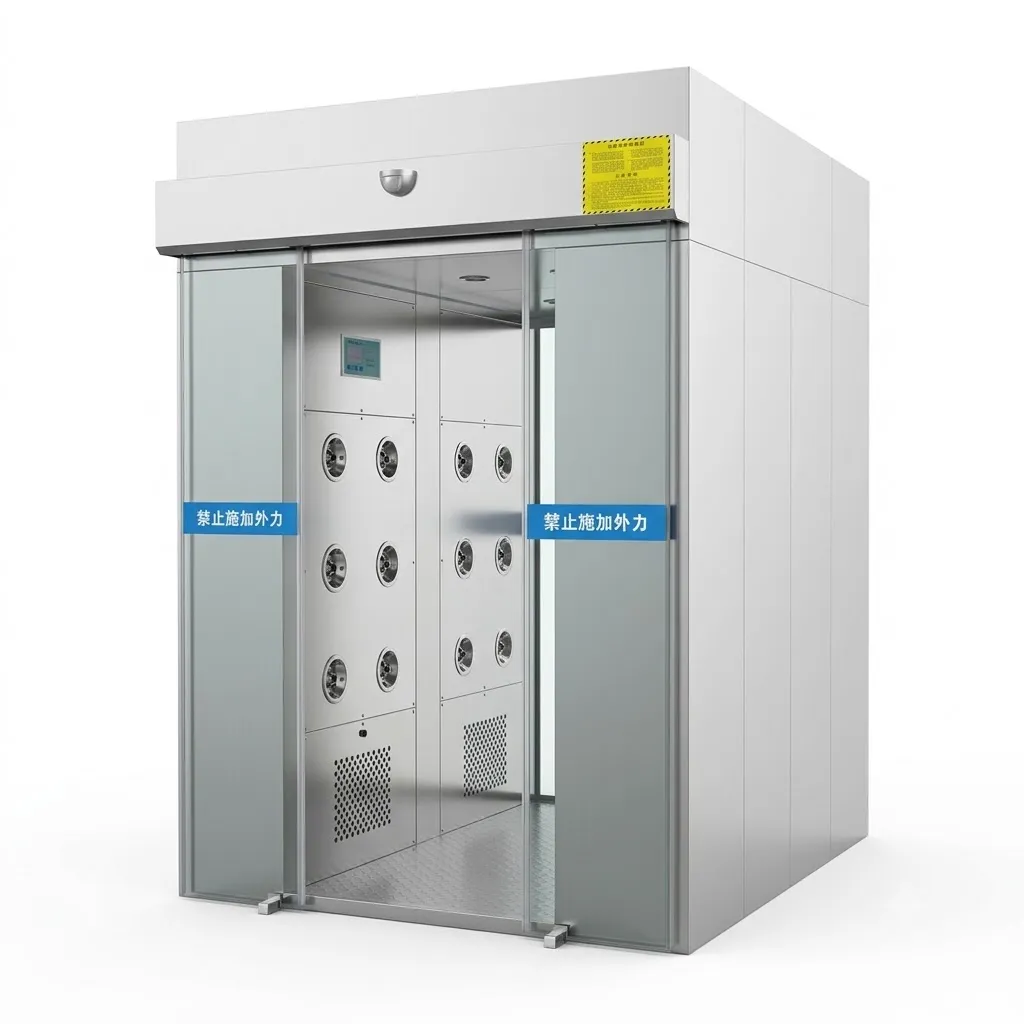

Inteligent air shower with auto door
More easy to operate the air shower .
Shoe sole cleaning machine
are in one Effectively remove dirt from workers’ soles and dry them .It is widely used in food processing plant
Anti-static brake machine
Air shower with this machine can test and remove static electricity from personnel to prevent damage to workshop equipment caused by static electricity
AGV car
Air shower is equipped with access control, which supports face recognition, fingerprint recognition, password and card swipe for entry.
Gas Pressure Purge
Person need to have wash their hand by this machine and then the air shower door will open automatic .
Spray disinfection
air shower installed a germicidal lamp can effectively sterilize the air shower room ,provide clean air for the cleanroom .

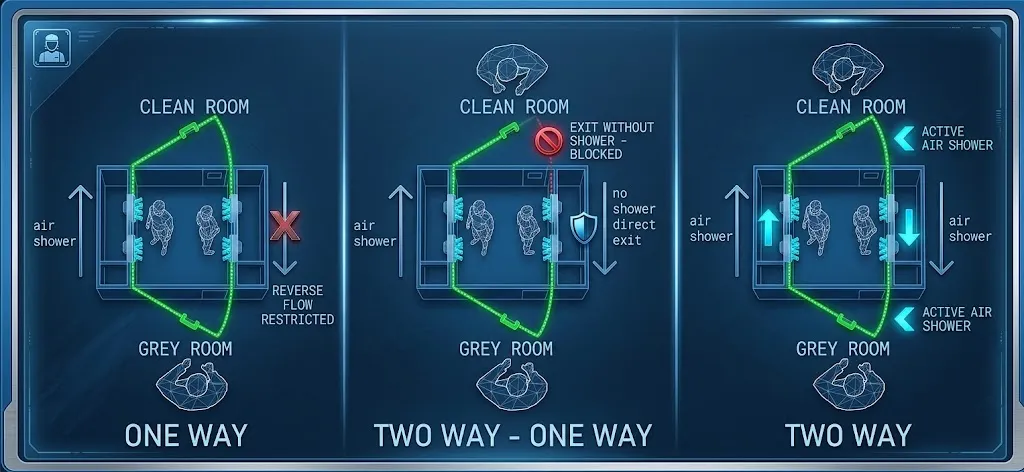

Kiwin Air Shower Operating Sequence
1. One Way (Employee may enter the cleanroom but not exit through the air shower. At the state, the clean side door is locked while the grey side is unlocked. )
2. Two way–One Way (Employee may enter or exit the cleanroom through the air shower. when enter the cleanroom , the machine will work ,when leaving the cleanroom , the machine does not blow wind .)
3.Two way (Employee may enter or exit the cleanroom through the air shower. In both directions, the air shower is activated)

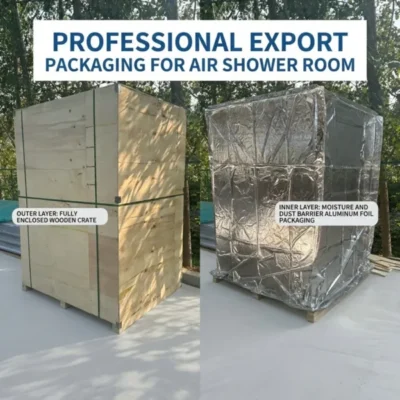

Package and Delivery
Inner Protection (Moisture & Dust Barrier): The unit is vacuum-sealed or wrapped with heavy-duty aluminum foil barrier film and desiccant inside, providing reliable resistance against humidity, salt spray, corrosion, and dust during long-distance ocean freight.
Outer Protection (Heavy-Duty Wooden Crate): Encased in a fully enclosed, export-standard fumigation-free plywood crate reinforced with high-strength strapping bands, preventing impacts, scratches, and structural damage.
Global Shipping Ready: Fully compliant with international export shipping regulations (ISPM 15 exempt for plywood), ideal for FCL (Full Container Load) and LCL (Less than Container Load) sea freight, air cargo, or cross-border trucking.
Global Clients That Trust Kiwin Machinery
FAQ
1Q: When can I get the machine after I place the order?
A: For standard models (such as single or double person units), the production lead time is typically 7–10 business days. For customized units or bulk orders, production takes around 10–15 business days. International ocean shipping usually takes 15–35 days depending on your destination port. Once you confirm the order, our logistics team provides a real-time tracking schedule from factory dispatch to final port arrival.
2Q: How to install the air shower after I get the machine?
A: We deliver our air showers in a pre-assembled modular design. To install, simply align the cabinet sections, connect the quick-plug aviation cables, and plug the unit into your local power supply. Every shipment includes a detailed English user manual, step-by-step 3D installation diagrams, and comprehensive video tutorials. Our engineering team is also available via WhatsApp and video calls for 24/7 remote commissioning guidance.
3Q: I want to customize an air shower, is it expensive?
A: Not at all. Because Kiwin Machinery is an original source manufacturer, our custom designs do not incur intermediate engineering markups. We offer flexible customization on dimensions, door configurations (manual, auto-sliding, or high-speed PVC roll-up doors), material grades (SS304, SS316L, or powder-coated steel), and multilingual HMI control systems. You receive tailor-made cleanroom solutions at direct factory pricing..
4Q: Are you a trading company or a manufacturer?
A: We are a verified, professional cleanroom equipment manufacturer with over 15 years of industry experience. Our facility features complete in-house manufacturing capabilities, including CNC laser cutting, precision metal bending, electrostatic powder coating, and final assembly lines. We welcome online factory video inspections at any time, as well as on-site visits to our plant.
5Q: What is your warranty for the air shower?
A: We offer an industry-leading 1-year standard warranty (with optional extended warranties up to 2–3 years) covering all core functional parts, including blowers, electronic interlocks, control boards, and sensors. If any non-consumable component fails under normal operation during the warranty period, we ship genuine replacement parts via international air express (DHL/FedEx) free of charge.
6Q: How to maintain the air shower?
A: Routine maintenance is straightforward and low-cost:
Pre-filter (G4): Clean or wash every 3–6 months to maintain airflow efficiency.
HEPA Filter (H13/H14): Replace every 12–24 months depending on usage frequency and ambient cleanliness levels.
Surface Care: Wipe the stainless steel or coated panels regularly using a 75% medical alcohol solution or cleanroom-approved disinfectant.
Photoelectric Sensors & Nozzles: Dust off sensor lenses and wipe stainless steel nozzles periodically to ensure responsive operation.
7Q: Do you support Door to Door delivery service?
A: Yes, we provide full-service DDP (Delivered Duty Paid) and DAP (Delivered at Place) door-to-door delivery solutions. Our freight partners handle international transport, customs clearance, import documentation, and final trucking directly to your facility or cleanroom project site. We also support standard EXW, FOB, and CIF terms if you prefer to use your own shipping forwarder.
8Q: Can I be your agent in our country, and do you support commission service?
A: Absolutely. We actively seek local brand distributors, cleanroom project contractors, and regional agents worldwide. We offer:
Competitive tiered agent pricing and exclusive margin protections.
Attractive commission-based affiliate policies for verified cleanroom project referrals.
How to get the cost of cleanroom air shower room ?
To get the latest air shower price list or a customized quotation based on your cleanroom requirements, leave your message below. Our technical team will reply within 12 hours.
