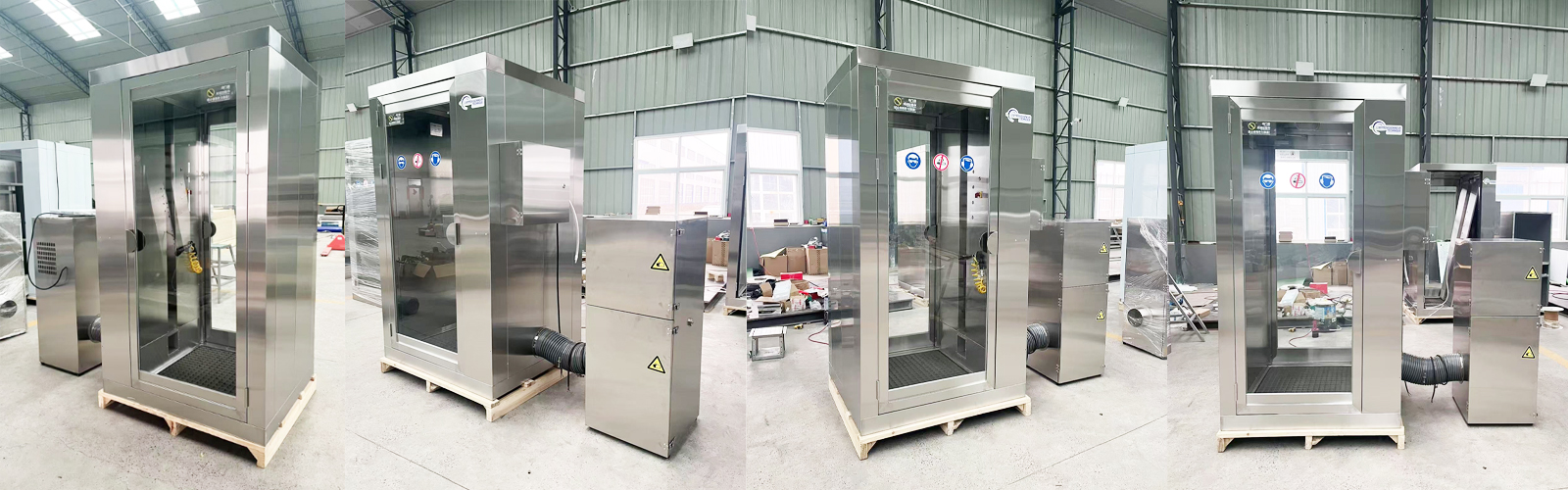

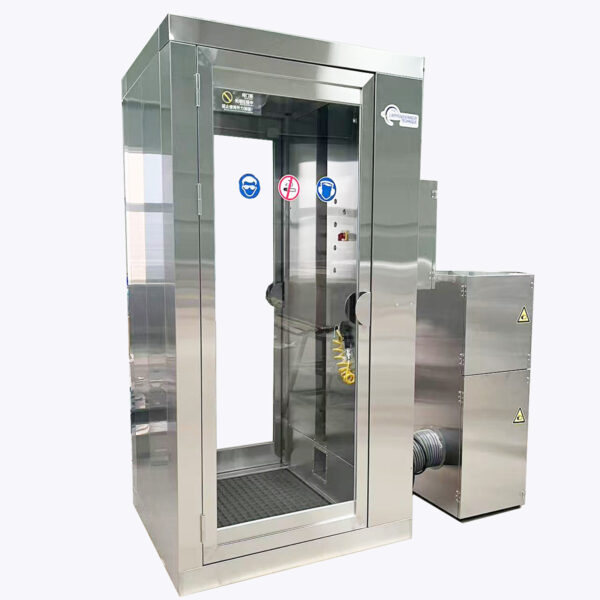

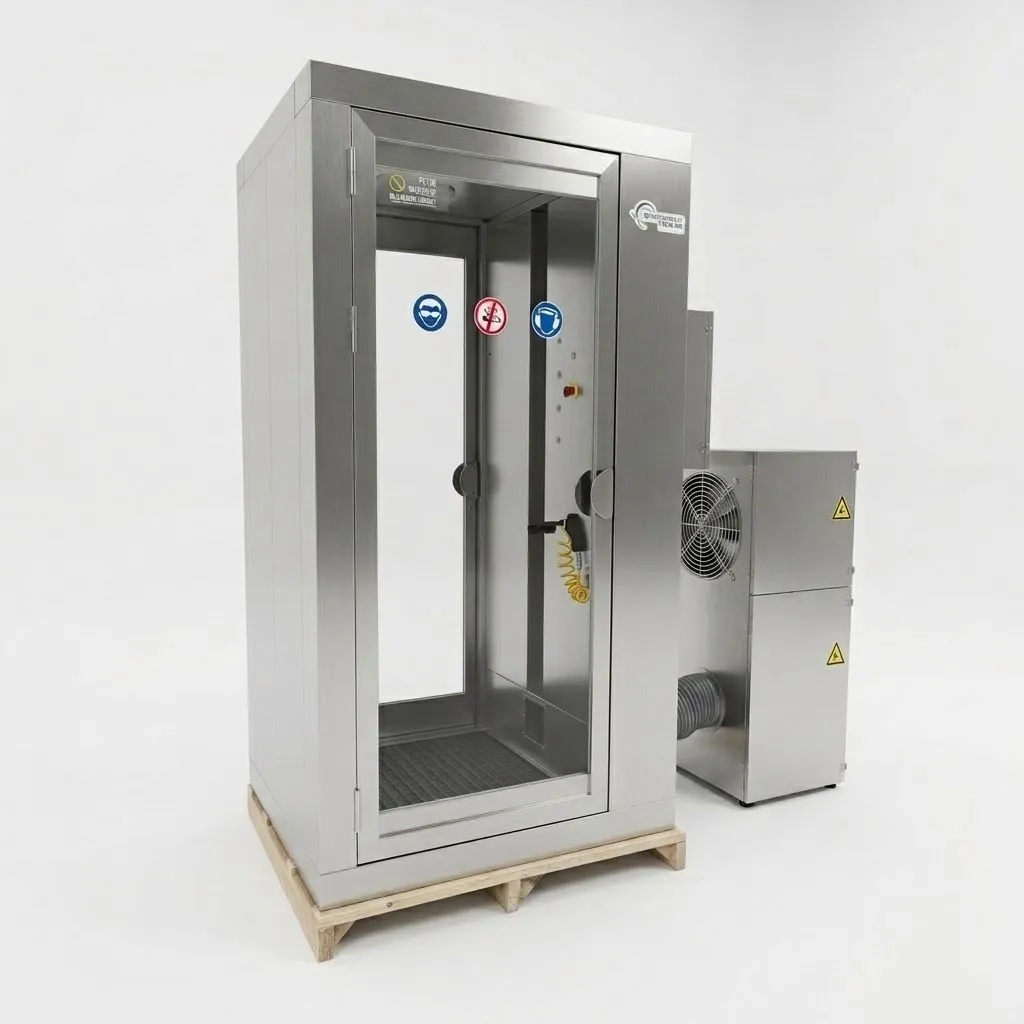

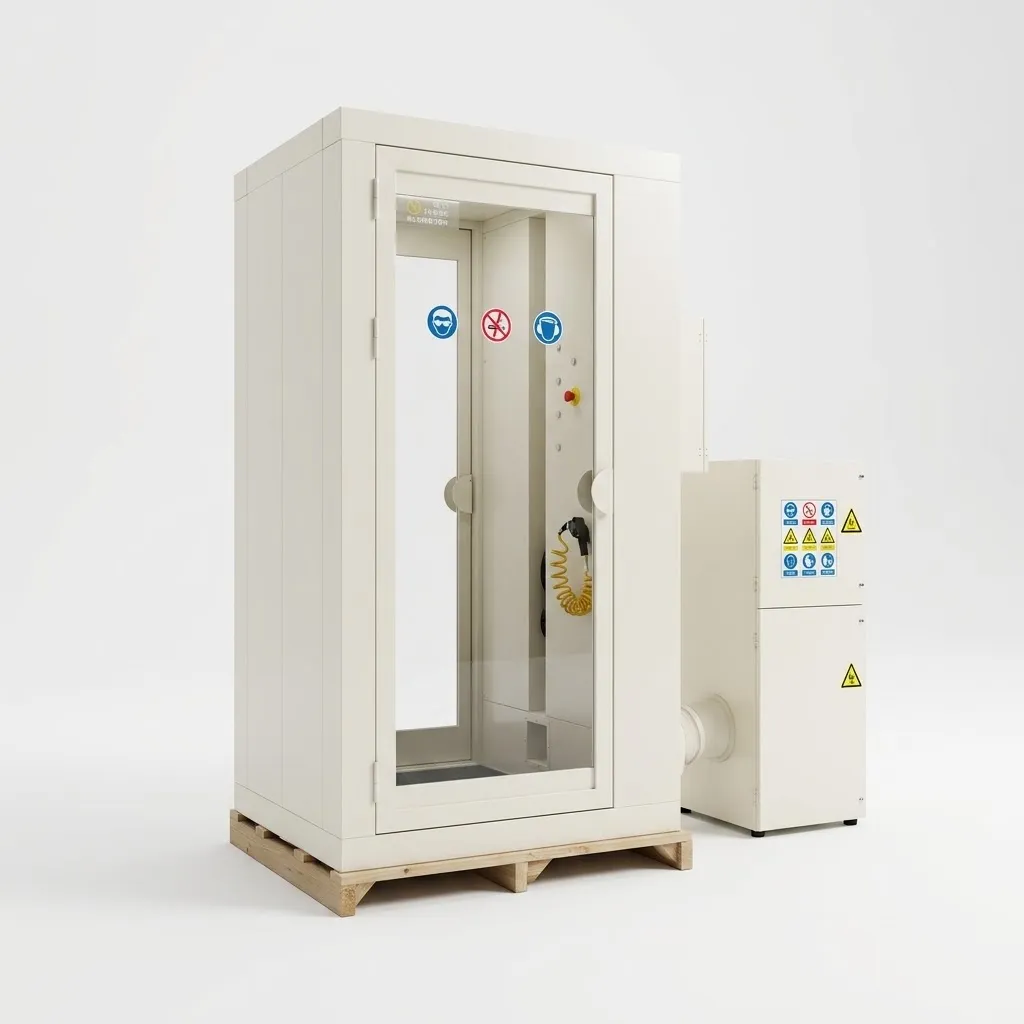

Air Shower Booth

Outter Size: 2100*1000*2250 mm
Inner Size : 800*910*1980 mm
Voltage: 220-240 V 50/60 Hz
Nozzle: 16pcs
Material: SS304
Air Velocity : 40 m/s ±5

Door: Single or double manual swing door

Air Shower EXW Price: 5350-6750 USD

Product Description

Dust is a serious health and working environment pollution for employees in some specific places.For example, in power plants, cement and gypsum plants, grinding and mixing plants, chemical industry and steel plants, dust particles can seriously affect the health of employees.By using KIWIN air shower booth, it can effectively remove dust particles from clothes and prevent dust and pollutants from entering the rest room, dressing room, etc. For employees, air shower provides a simple and effective way to clean themselves during working hours, before breakfast and lunch breaks, and at the end of the shift

Product Specifications
Product Model	LA-AS-01
Overall Dimensions (mm)	2100 (W) × 1000 (D) × 2250 (H)
Working Area Dimensions (mm)	800 (W) × 910 (D) × 1980 (H)
Cabinet Material	SUS201/ 304 Stainless Steel (Thickness: 1.0 mm) Power Coated Metal (Thickness: 1.5 mm)
Filtration Efficiency	H14 HEPA Filter ≥ 99.99% @ 0.3 μm
Air Velocity	40 – 50 m/s
Number of Nozzles	16 pcs (360° Rotatable Stainless Steel)
Power Supply	220v-440v 50/60hz Three-Phase
Rated Power	3 kW
Control System	Manul Button
Blowing Type	Single side (Left or Right )
Fan	Centrifugal fan, 1250 CMH × 1000 Pa
Door	Single Door or Double Door

All 304 stainless steel, plate thickness 1.2mm, outstanding rust resistance .
Double door or Single door .

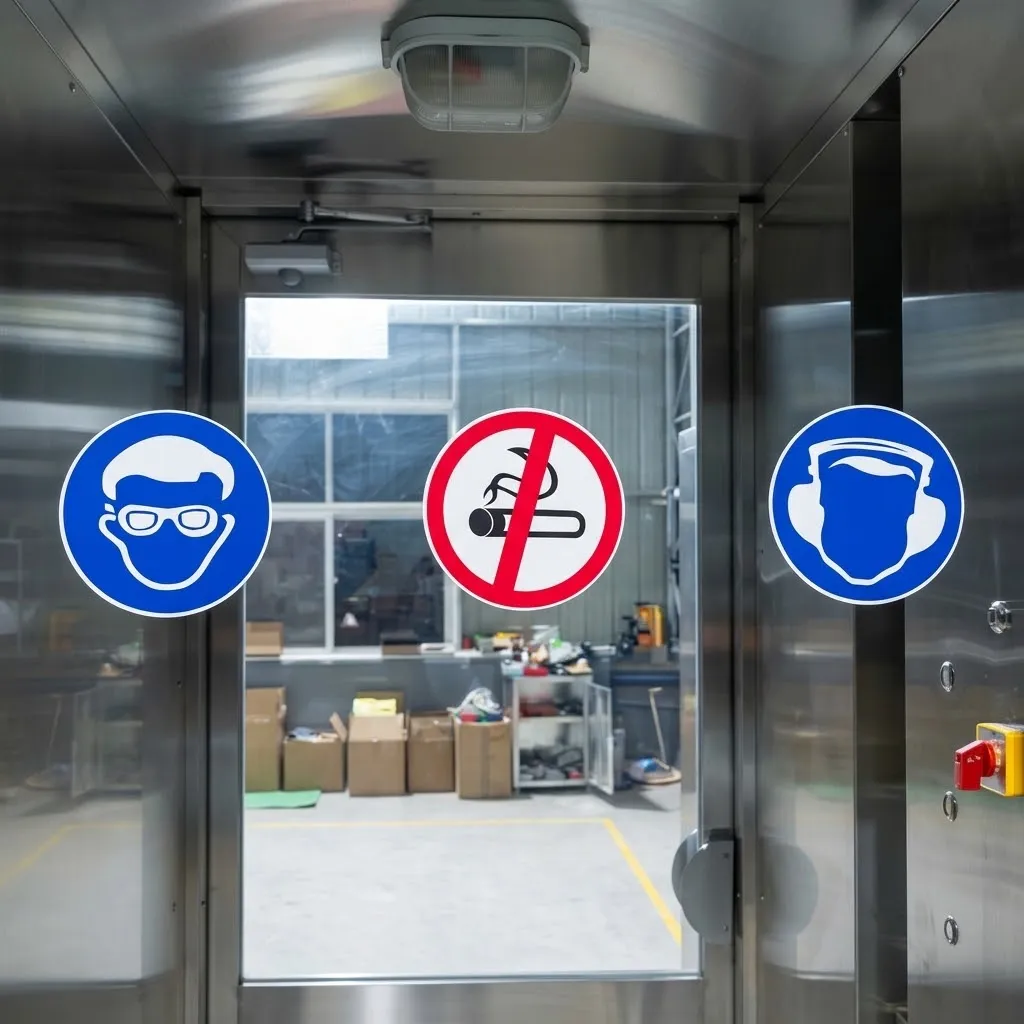

Transparent tempered glass, safe and convenient .

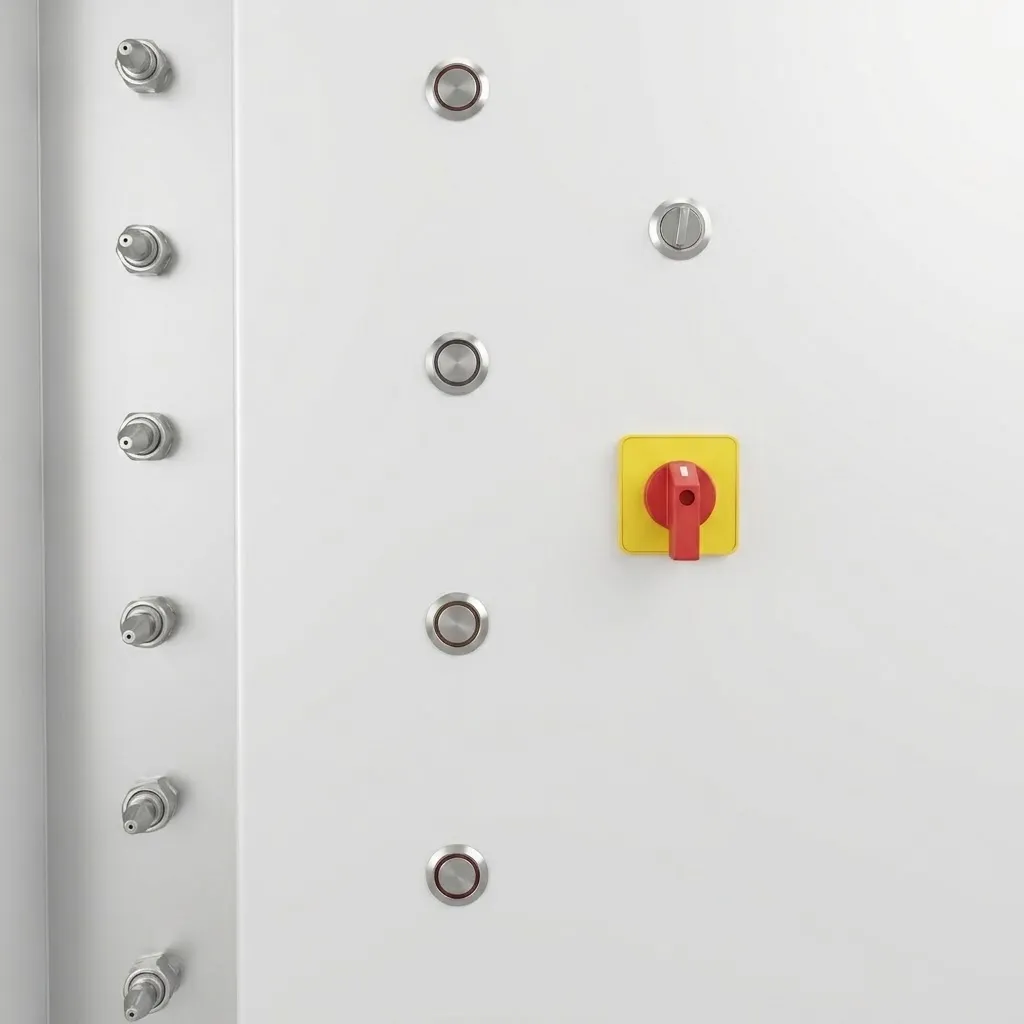

The nozzle groups are controlled via buttons. Each button has a different color and can control four nozzles. This allows for clear identification, as the entire garment can be blown off or only parts of it.
HEPA filter(s) provide 99.99% Typical efficiency for particle sizes of 0.3 microns.
Easy to install and easy to maintain.

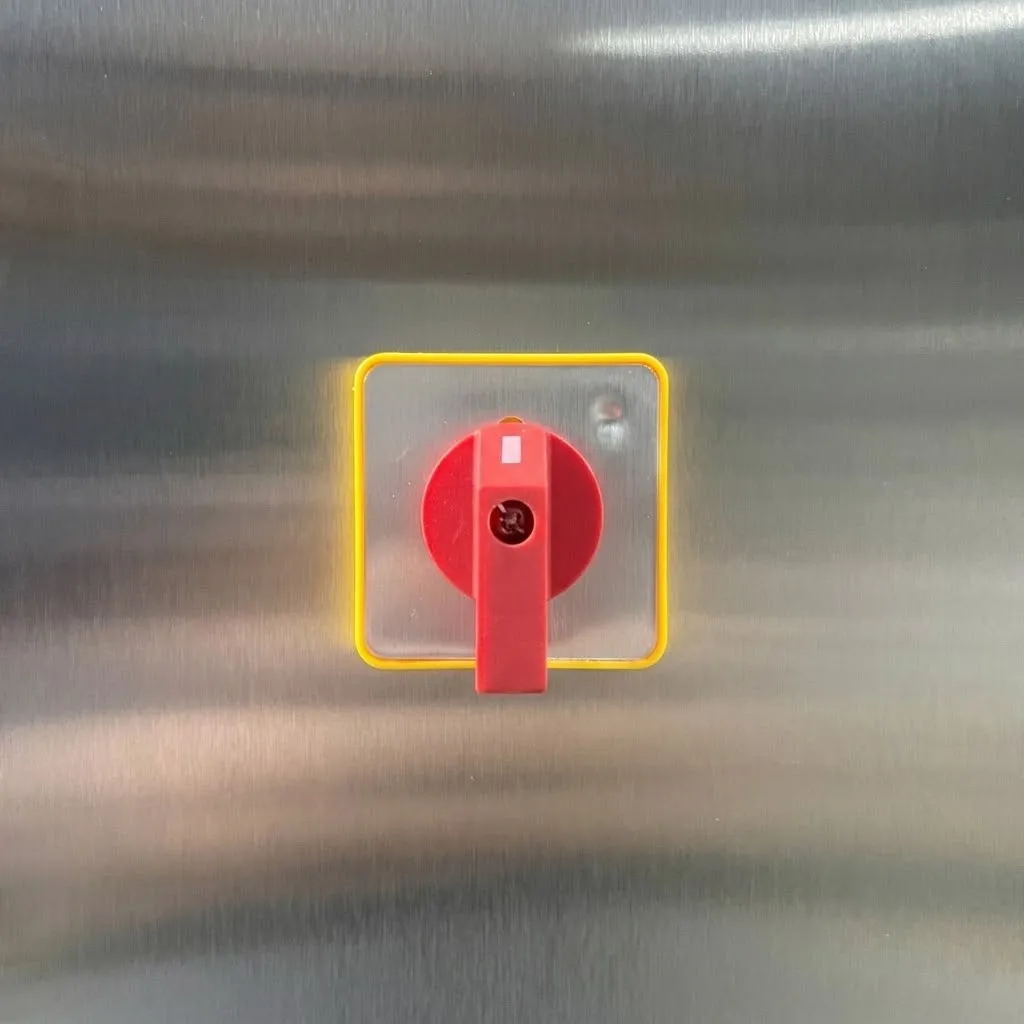

Blower are controlled by switch button in the air shower . Mechanical button, low failure rate.

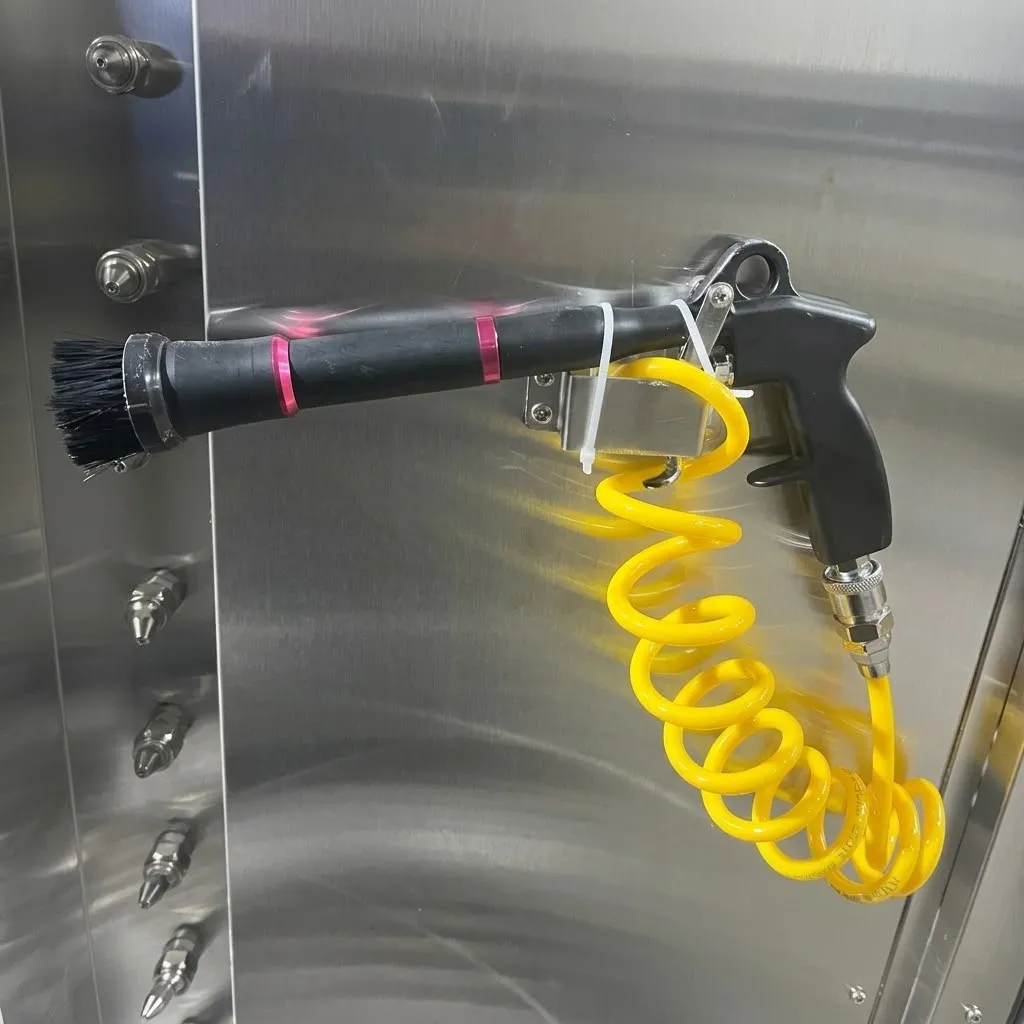

High pressure transparent hose, good toughness and long service life
Good sealing performance prevents external air from entering the clean area and causing cross-contamination.
The nozzle angle is adjustable. It can swing 30° up and down, left and right.

Kiwin Air Shower Features

HMI (PLC control)

1. Pass word protection . Preventing personnel from adjusting air shower parameters

2. Supporing 8 languages operation . Supports English, Spanish, French, German, Dutch, Arabic, Thai, and Chinese panel operation.

3. 5 ways opearation .

Door Closer

Unlike traditional scissor-arm closers, slide rail closers feature a streamlined, low-profile track. The arm sits neatly flush with the frame, providing a modern, clean look that integrates seamlessly into high-end architectural and commercial designs.Lower Opening Resistance (Easier to Open)

Pauge Manitor

As usage time increases, dust accumulation on the filter can lead to increased resistance and higher pressure differential. A differential pressure gauge can visually determine if the filter is clogged, prompting timely replacement and preventing reduced airflow and compromised shower performance due to filter blockage.

HEPA Filter (H13/H14)

H13 HEPA Filter for Air Shower Chamber Designed specifically for cleanroom air shower systems to capture airborne particulates down to 0.3 microns with up to 99.995% filtration efficiency, ensuring high-velocity, contamination-free airflow.

Pre-filter ( G4 )

G4 Pre-Filter for Air Shower Chamber Engineered as the primary filtration stage in air shower systems to capture large airborne dust, hair, Effectively protects downstream H13 HEPA filters .

FAQ

Q1: What is an air shower and how does it work?

A: An air shower is a specialized, self-contained chamber installed at the entrance of cleanrooms and controlled environments. It uses high-velocity, HEPA-filtered air jets (typically 20–25 m/s) to blow off dust, lint, and particulate matter from personnel or equipment surfaces before they enter the clean environment.

Q2: Why is an air shower necessary for a cleanroom?

: Humans and cargo are the primary sources of contamination in cleanrooms. Air showers act as a physical barrier and a primary decontamination step, significantly reducing the particle load entering the cleanroom and prolonging the life of secondary cleanroom filters.

Q3: How long should an air shower cycle last?

A: The standard recommended blow time is 10 to 15 seconds. Most modern air showers allow custom adjustments from 0 to 99 seconds depending on your facility’s operational standards.

Q4: How do I choose between a single-person and a multi-person air shower?

Single-person Air Shower: Best for small teams or low-frequency entries.
Tunnel/Multi-person Air Shower: Ideal for shifts where 10+ workers enter simultaneously. A continuous air shower tunnel keeps shift-change delays to a minimum.
Q5: What is the difference between an Air Shower and a Cargo Air Shower?

Personnel Air Shower: Designed with standard doors and step-over thresholds for human entry.
Cargo/Freight Air Shower: Features wider double doors or sliding/rollup doors, a reinforced floor, and no bottom threshold to allow smooth entry for hand trucks, forklifts, and large equipment.
