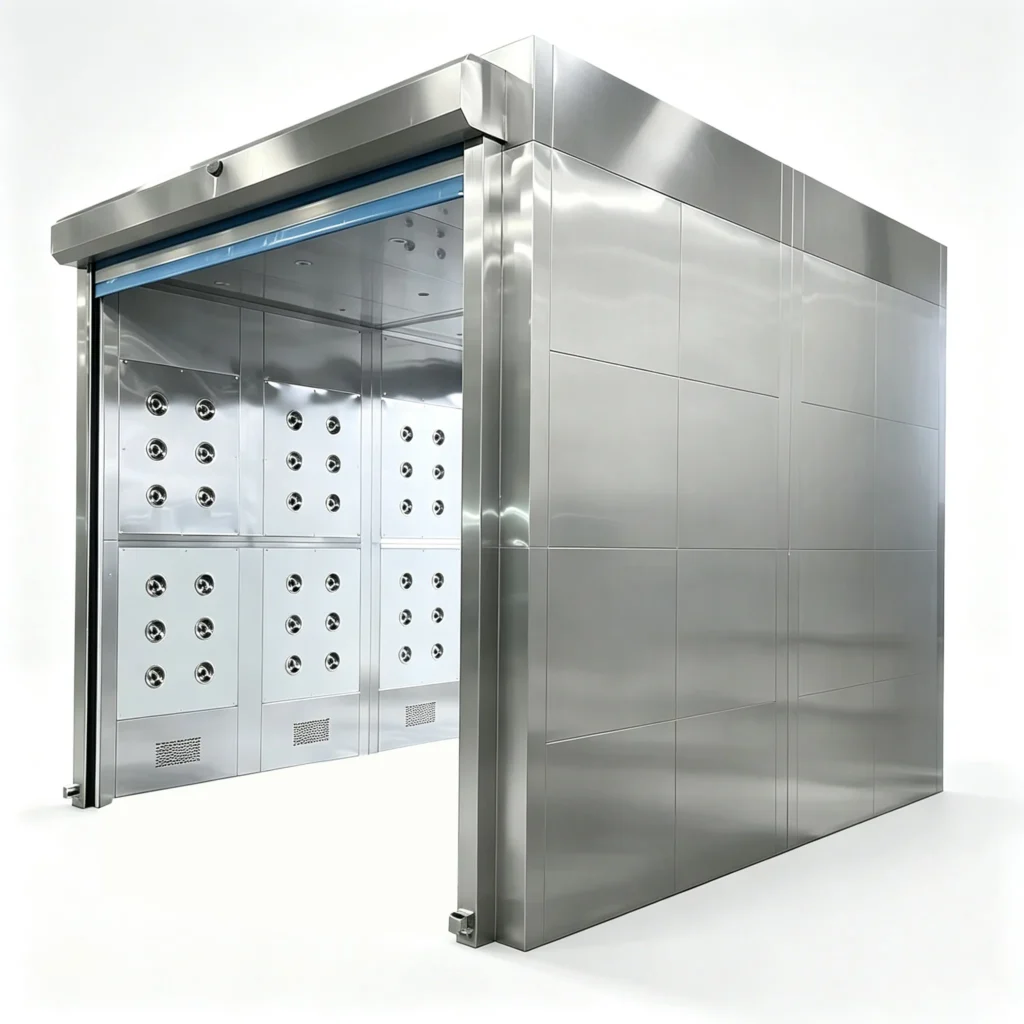

Cargo Air Shower

Outter Size:3600*4000*4500 mm
Inner Size : 3000*4000*4000 mm
Voltage: 110/220/380 V 50/60 Hz
Nozzle: 96pcs Left 48 pcs Right 48 pcs
Material: SS201 / SS304 / SS316 / Power Coated Plate
Function : Inteligent Englih Voice Electrical interlock

H13 / H 14 HEPA ISO Cleaning class 5 -8

Air Shower EXW Price: 10500-12500 USD

Product Description

A fast roll-up door air shower is an automated cleanroom decontamination entryway designed to rapidly remove surface particles from personnel or materials. Integrating high-speed roll-up curtains with high-velocity HEPA-filtered air jets, the system prevents cross-contamination between classified cleanrooms and non-controlled zones. The interlocking rapid doors ensure an airtight seal, minimize cycle times, and support efficient, high-throughput traffic in pharmaceutical, electronics, and food manufacturing facilities.

Product Specifications
Product Model	KW-AS-CS
Overall Dimensions (mm)	3600 (W) × 4000 (D) × 4500 (H) or Customized
Working Area Dimensions (mm)	3000 (W) × 4000 (D) × 4000 (H) or Customized
Cabinet Material	SUS201/ 304 Stainless Steel (Thickness: 1.0 mm) Power Coated Metal (Thickness: 1.5 mm)
Filtration Efficiency	H14 HEPA Filter ≥ 99.995% @ 0.3 μm / Pre-filter G4 Washable G4 filter, 85%–92% efficiency
Air Velocity	20 – 25 m/s
Number of Nozzles	96 pcs (360° Rotatable Stainless Steel)
Power Supply	110v-240v 50/60 Hz Single-Phase / 220v-440v 50/60hz Three-Phase
Rated Power	10 kW
Control System	HMI ( PLC control ) supporting 8 languages
Blowing Type	Three sides (Left + Right + Ceiling side )
Fan	Centrifugal fan, 1250 CMH × 1000 Pa
Available Options :	Anti-ESD ionizer system , Access control system

Premium Construction: Built entirely from 1.0 mm SUS304 stainless steel, offering superior corrosion resistance and durability.
Smart Electronic Interlock: Interlocking double-door system prevents simultaneous opening to eliminate cross-contamination.
Visual Safety: Fitted with transparent tempered glass observation windows for safe and convenient monitoring.
Intelligent Control & Low Noise: Features a PLC control system, smart voice prompts, and infrared auto-induction blowing, powered by an ultra-quiet, high-performance blower fan.
Dual Filtration System: High-efficiency HEPA filters achieve 99.99% typical efficiency at 0.3 μm, paired with washable pre-filters for extended lifespan.
Intuitive Pressure Monitoring: Digital differential pressure gauge provides real-time, at-a-glance monitoring of filter and equipment status.
Airtight Sealing: Premium perimeter seals effectively block unfiltered external air from compromising the cleanroom environment.
Emergency Override: Emergency stop button instantly releases the door interlocks for quick and safe personnel evacuation.
Easy Installation & Maintenance: Modular design ensures fast on-site setup and hassle-free routine servicing.
Flexible Customization: Supports optional add-ons including sole cleaning machines, access control systems, automatic hand sanitizers, UV germicidal lamps, and static eliminators (ionizers).

Kiwin Air Shower Features

HMI (PLC control)

1. Pass word protection . Preventing personnel from adjusting air shower parameters

2. Supporing 8 languages operation . Supports English, Spanish, French, German, Dutch, Arabic, Thai, and Chinese panel operation.

3. 5 ways opearation .

Door Closer

Unlike traditional scissor-arm closers, slide rail closers feature a streamlined, low-profile track. The arm sits neatly flush with the frame, providing a modern, clean look that integrates seamlessly into high-end architectural and commercial designs.Lower Opening Resistance (Easier to Open)

Pauge Manitor

As usage time increases, dust accumulation on the filter can lead to increased resistance and higher pressure differential. A differential pressure gauge can visually determine if the filter is clogged, prompting timely replacement and preventing reduced airflow and compromised shower performance due to filter blockage.

HEPA Filter (H13/H14)

H13 HEPA Filter for Air Shower Chamber Designed specifically for cleanroom air shower systems to capture airborne particulates down to 0.3 microns with up to 99.995% filtration efficiency, ensuring high-velocity, contamination-free airflow.

Pre-filter ( G4 )

G4 Pre-Filter for Air Shower Chamber Engineered as the primary filtration stage in air shower systems to capture large airborne dust, hair, Effectively protects downstream H13 HEPA filters .

FAQ

Q1: What is an air shower and how does it work?

A: An air shower is a specialized, self-contained chamber installed at the entrance of cleanrooms and controlled environments. It uses high-velocity, HEPA-filtered air jets (typically 20–25 m/s) to blow off dust, lint, and particulate matter from personnel or equipment surfaces before they enter the clean environment.

Q2: Why is an air shower necessary for a cleanroom?

: Humans and cargo are the primary sources of contamination in cleanrooms. Air showers act as a physical barrier and a primary decontamination step, significantly reducing the particle load entering the cleanroom and prolonging the life of secondary cleanroom filters.

Q3: How long should an air shower cycle last?

A: The standard recommended blow time is 10 to 15 seconds. Most modern air showers allow custom adjustments from 0 to 99 seconds depending on your facility’s operational standards.

Q4: How do I choose between a single-person and a multi-person air shower?

Single-person Air Shower: Best for small teams or low-frequency entries.
Tunnel/Multi-person Air Shower: Ideal for shifts where 10+ workers enter simultaneously. A continuous air shower tunnel keeps shift-change delays to a minimum.
Q5: What is the difference between an Air Shower and a Cargo Air Shower?

Personnel Air Shower: Designed with standard doors and step-over thresholds for human entry.
Cargo/Freight Air Shower: Features wider double doors or sliding/rollup doors, a reinforced floor, and no bottom threshold to allow smooth entry for hand trucks, forklifts, and large equipment.
