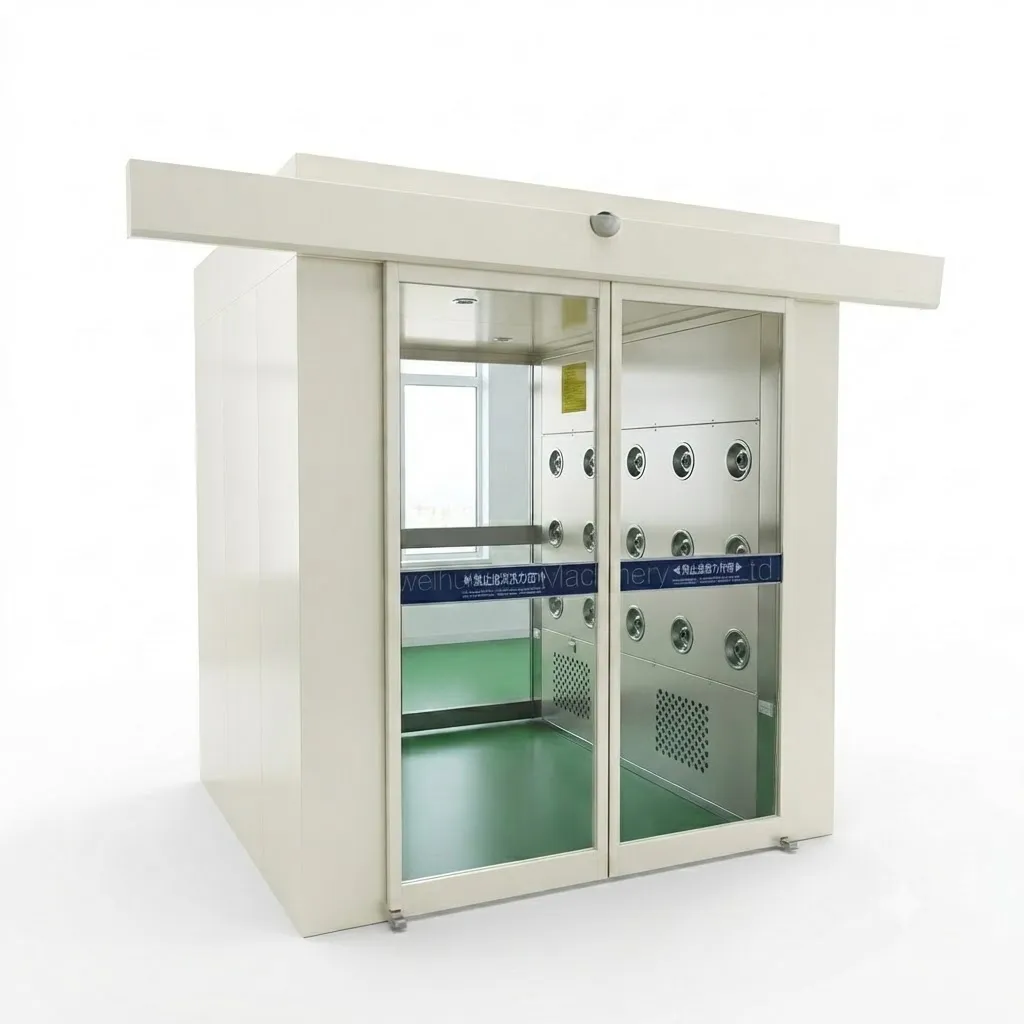

Auto Door Air Shower For Materials

Outter Size:2000*3000*2200 mm
Inner Size : 1400*3000*2020 mm
Voltage: 110/220/380 V 50/60 Hz
Nozzle: 36pcs Left 12 pcs Right 12 pcs
Function : Inteligent Englih Voice Electrical interlock

H13 / H 14 HEPA ISO class 5-8

Air Shower EXW Price: 5500-7500 USD

Product Description

Automatic sliding door air showers are specialized cleanroom entry systems designed to remove surface dust and particulate matter from personnel and materials before they enter controlled environments. Combining sensor-activated horizontal sliding doors with high-velocity, HEPA-filtered air jets, they ensure a completely hands-free, hygienic transition between zones.

Product Specifications
Product Model	KW-AS-CS
Overall Dimensions (mm)	2000 (W) × 3000 (D) × 2200 (H) （Door Track L 2900mm*H180mm ) or Customized
Working Area Dimensions (mm)	1400 (W) × 3000 (D) × 2020 (H) or Customized
Cabinet Material	SUS201/ 304 Stainless Steel (Thickness: 1.0 mm) Power Coated Metal (Thickness: 1.5 mm)
Filtration Efficiency	H14 HEPA Filter ≥ 99.995% @ 0.3 μm / Pre-filter G4 Washable G4 filter, 85%–92% efficiency
Air Velocity	20 – 25 m/s
Number of Nozzles	36 pcs (360° Rotatable Stainless Steel)
Power Supply	110v-240v 50/60 Hz Single-Phase / 220v-440v 50/60hz Three-Phase
Rated Power	3 kw
Control System	HMI ( PLC control ) supporting 8 languages
Blowing Type	Two sides (Left and Right ) Ceiling side (Optional )
Fan	Centrifugal fan, 1250 CMH × 1000 Pa
Available Options :	Anti-ESD ionizer system , Access control system

Key Features & Operational Highlights:

- Touchless Operation: Automatic motion or foot sensors activate the sliding doors, eliminating physical contact to prevent bacterial and cross-contamination.
- Space-Saving Mechanism: Smooth horizontal sliding doors maximize usable floor area and avoid the door-swing clearance required by traditional swing doors.
- Dual-Door Interlock System: Electronic interlocks prevent both doors from opening simultaneously, maintaining cleanroom differential pressure and isolating unfiltered external air.
- High-Efficiency Decontamination: Delivers high-velocity air streams (typically ≥20–25 m/s) via adjustable stainless steel nozzles, passing through 99.99% @ 0.3 μm HEPA filtration.
- Smart Safety Integration: Equipped with anti-pinch safety light curtains and emergency stop release buttons to ensure personnel safety at all times.

Kiwin Air Shower Features

HMI (PLC control)

1. Pass word protection . Preventing personnel from adjusting air shower parameters

2. Supporing 8 languages operation . Supports English, Spanish, French, German, Dutch, Arabic, Thai, and Chinese panel operation.

3. 5 ways opearation .

Door Closer

Unlike traditional scissor-arm closers, slide rail closers feature a streamlined, low-profile track. The arm sits neatly flush with the frame, providing a modern, clean look that integrates seamlessly into high-end architectural and commercial designs.Lower Opening Resistance (Easier to Open)

Pauge Manitor

As usage time increases, dust accumulation on the filter can lead to increased resistance and higher pressure differential. A differential pressure gauge can visually determine if the filter is clogged, prompting timely replacement and preventing reduced airflow and compromised shower performance due to filter blockage.

HEPA Filter (H13/H14)

H13 HEPA Filter for Air Shower Chamber Designed specifically for cleanroom air shower systems to capture airborne particulates down to 0.3 microns with up to 99.995% filtration efficiency, ensuring high-velocity, contamination-free airflow.

Pre-filter ( G4 )

G4 Pre-Filter for Air Shower Chamber Engineered as the primary filtration stage in air shower systems to capture large airborne dust, hair, Effectively protects downstream H13 HEPA filters .

FAQ

Q1: What is an air shower and how does it work?

A: An air shower is a specialized, self-contained chamber installed at the entrance of cleanrooms and controlled environments. It uses high-velocity, HEPA-filtered air jets (typically 20–25 m/s) to blow off dust, lint, and particulate matter from personnel or equipment surfaces before they enter the clean environment.

Q2: Why is an air shower necessary for a cleanroom?

: Humans and cargo are the primary sources of contamination in cleanrooms. Air showers act as a physical barrier and a primary decontamination step, significantly reducing the particle load entering the cleanroom and prolonging the life of secondary cleanroom filters.

Q3: How long should an air shower cycle last?

A: The standard recommended blow time is 10 to 15 seconds. Most modern air showers allow custom adjustments from 0 to 99 seconds depending on your facility’s operational standards.

Q4: How do I choose between a single-person and a multi-person air shower?

Single-person Air Shower: Best for small teams or low-frequency entries.
Tunnel/Multi-person Air Shower: Ideal for shifts where 10+ workers enter simultaneously. A continuous air shower tunnel keeps shift-change delays to a minimum.
Q5: What is the difference between an Air Shower and a Cargo Air Shower?

Personnel Air Shower: Designed with standard doors and step-over thresholds for human entry.
Cargo/Freight Air Shower: Features wider double doors or sliding/rollup doors, a reinforced floor, and no bottom threshold to allow smooth entry for hand trucks, forklifts, and large equipment.
